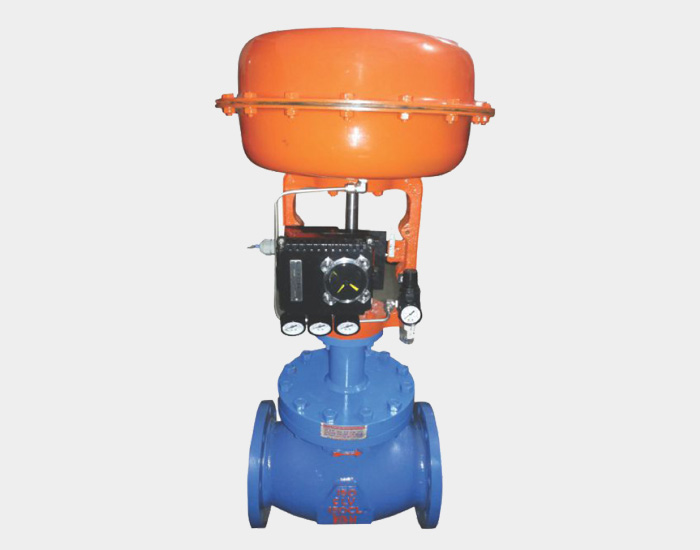

Pneumatic Diaphragm Control Valve
| Model | CHD & CLD |
| Actuator | Spring return type, Heavy duty Pneumatic Diaphragm |
| Type | Normally Close/Open |
| Size | ½” to 8” |
| Body | WCB |
| Diaphragm Cover | M.S. (Steel Metal) |
| Working Press | 150# / 300# / 600# |
| Working Temp. | 220°c / 450°c |
| Seating | Metal to Metal & Soft Seated |
| Media | Air, Water, Oil, Gas, Steam & Hydraulic Oil |

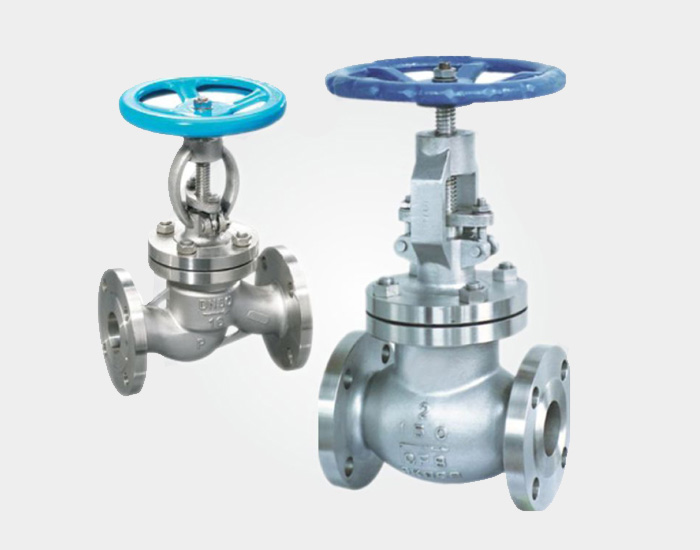

Globe Valve
| Model | GLOBE TYPE & ND 40, ND 16 |
| Body | Cast Steel (Astm A216 Gr. WCB) |
| Int. Parts | S.S. 304 & S.S. 410 |
| Trims | SS 13% Crom (AISI 410) |
| Class | SA-150# / 300# / 600# / 900# |
| Ends | Flanged |
| Size | 15mm to 300mm |

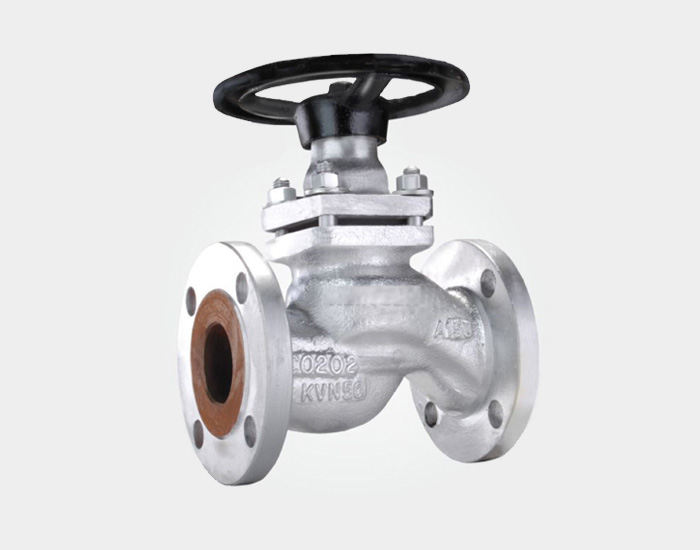

Piston Valve
| Body | Cast Steel (Astm A216 Gr. WCB) / C.I. |
| Trims | SS 13% Crom (AISI 410) |
| Class | SA - 150# / 300# / 600# / 900# |
| Ends | Flanged |
| Size | 1” to 6” |

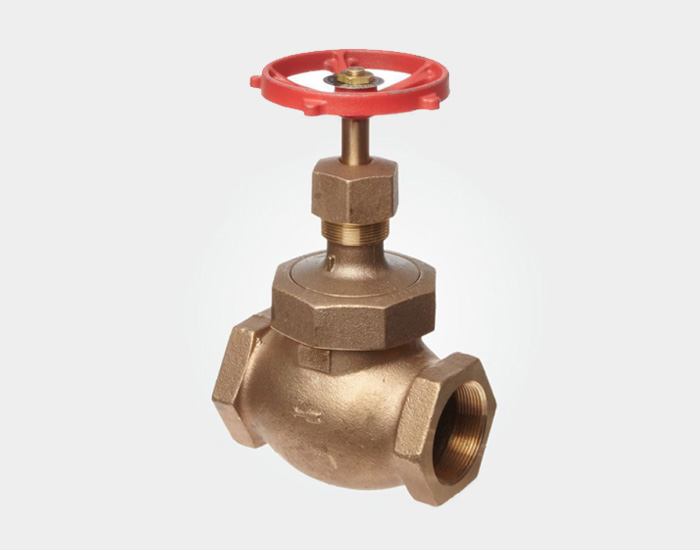

Globe Valve (Gun Metal)
| Body | Gun Metal |
| Trims | S.S. 304 |
| Class | 150# / 300# |
| Ends | Screwed |
| Size | 1/2” to 3” |

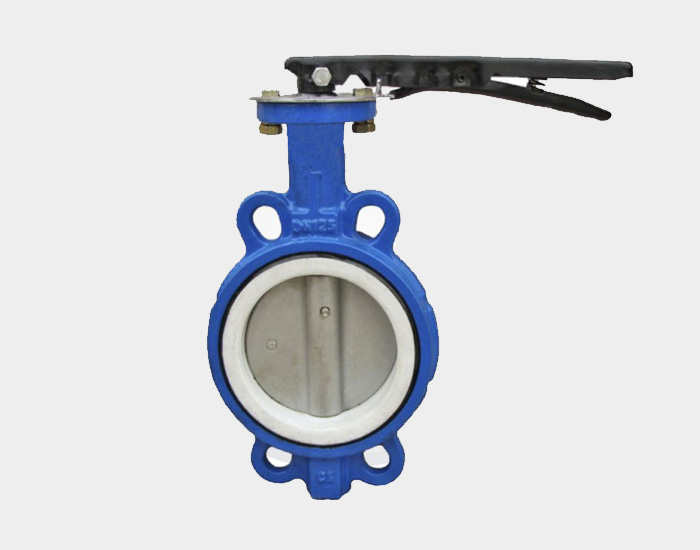

Butterfly Valve
| Seat Design | Rubber Lining / Replaceable |
| Operating | Lever Operated |
| Body | C.I./C.S. (WCB) |
| Disc. | C.I./ S.S.304 |
| Design | Lug Type |
| Size | 40mm to 500mm |
| Operation | Offset Disc. |
| Ends | Wafer Type |

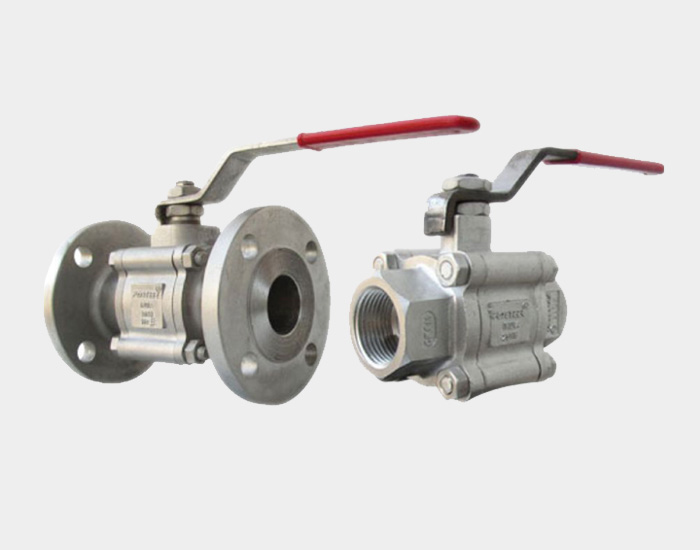

Ball Valve
| Body | WCB / CF8 / CF8M |
| Design | 2 Pc. / 3 Pc. |
| Ends | Screwed / Flanged |
| Size | 1/2” to 10” |

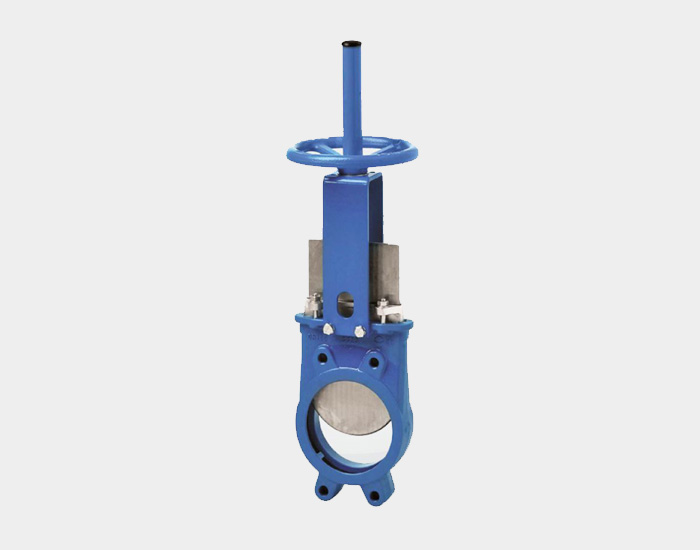

Pulp Valve
| Body | C.I. (IS 210Gr. FG 220/260) S.S. 304 / S.S. 316 |
| Parts | S.S. 13% Cr./ S.S.304 / S.S. 316 |
| Press | 6 kg./cm² Max |
| Oper. | Manually/Pneumatically/Electrically |
| Ends | Wafer Type |
| Size | 40 mm to 500mm |

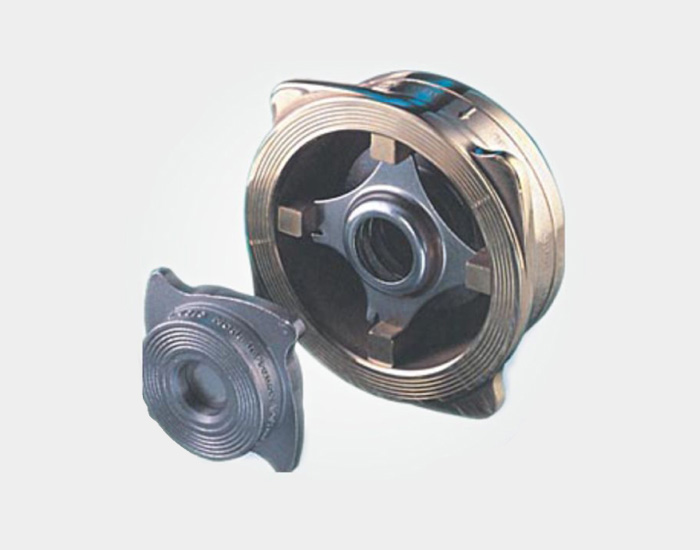

Disc Check Valve (DCV)
| Body | ASTMA 351 GR. CF8 / CF8M |
| Disc | AISI 304 or AISI 316 (Bar Stock) |
| Spring | AISI 304 or AISI 316 (Standard Stock) |
| Disc Seat | Metal to Metal |
| Spr. Retainer | AISI 304 or AISI 316 |
| Pressure Rating | PN40 |
| Flange Standard | BS 10 Table D, E & H |

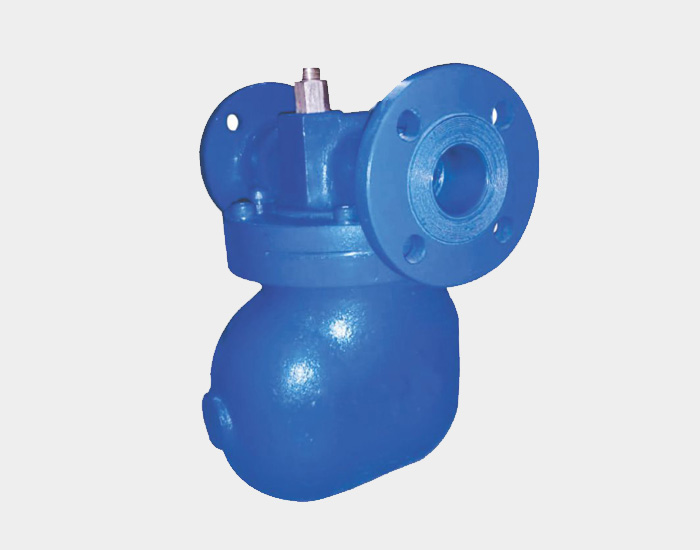

Ball Float Type Steam Trap
| Material | C.I. Greaded |
| Internal | S.S. 304 |
| Ends | Threaded / Flanged |
| Size | ½” to 2” |
Strainer
| Body | C.I. (IS 210Gr. FG 220/260) C.I. (ASTM A216 Gr. WCB) CSS (ASTM A351CF8/CF8M) |
| Mess | S.S.304 / S.S. 316 / Brass |
| Type | IBR & Non IBR |
| Class | ND-40, ASA-150, ASA-300 |
| Ends | Flanged / Screwed / Socketweld |
| Size | 15 mm to 150mm |
| Available | IBR & Non IBR |

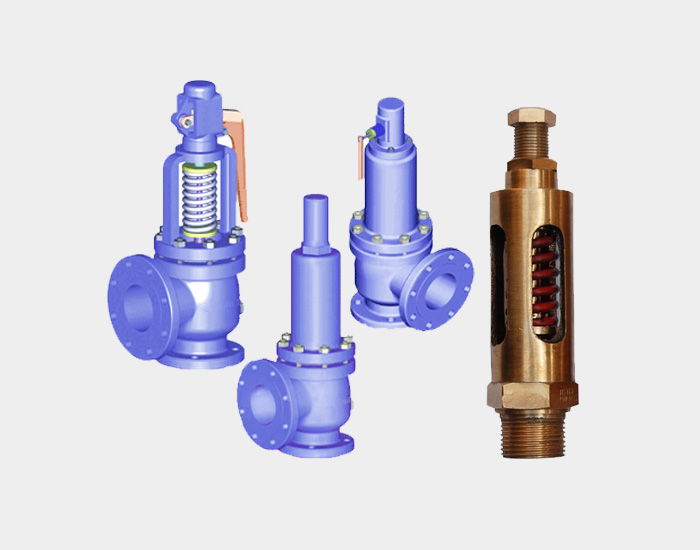

Safety Valve
| Body | C.I., WCB, Gun Metal |
| Internal Parts | S.S. 304 |
| Class | 150# / 300# |
| Ends | Flanged / Screwed |
| Size | 1/2” to 6” |
| Available | IBR & Non IBR |

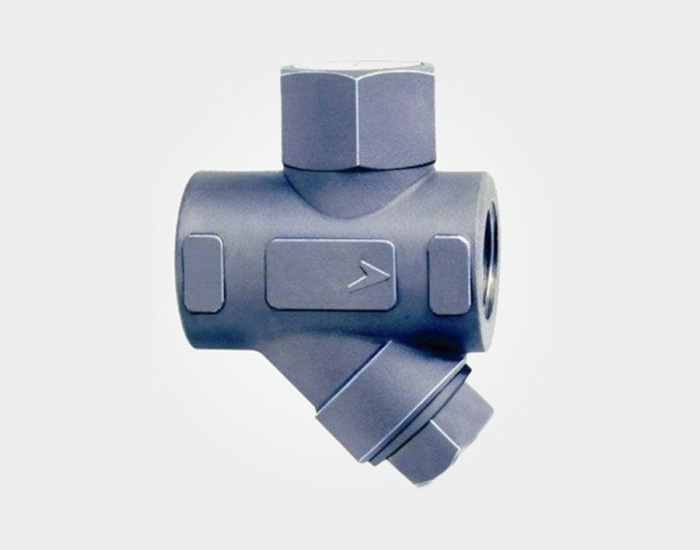

TD - 3 Trap
| Body | S.S. 304 |
| Size | 15mm to 25mm |
| Ends | Screwed / Socket weld |
| Max.Intel | 32kg./cm² at 425°C |
| Min. Press | 0.25 kg./cm² |
| Available | IBR & Non IBR |

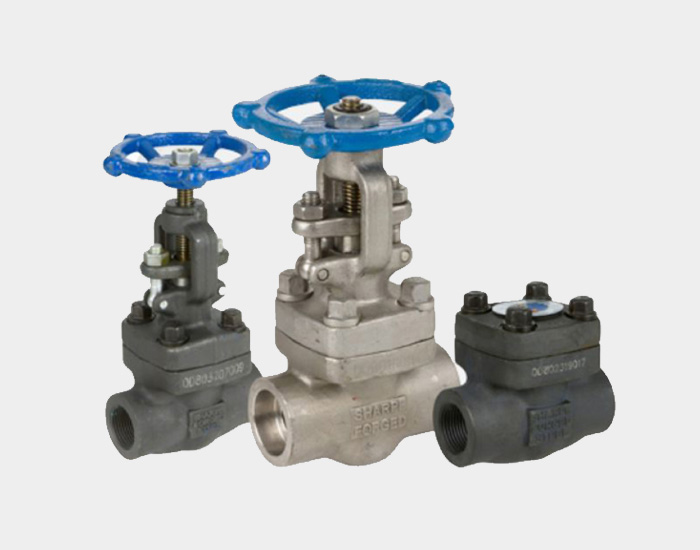

Forged Steel Globe Valve
| Body | Forged Steel 105, F304, F316, F11, F22 |
| Trims | SS 13% Crom (AISI 410) Stultified |
| Size | 15mm to 50mm |
| Class | ASA-800/1500/25003 |
| Available | IBR & Non IBR |

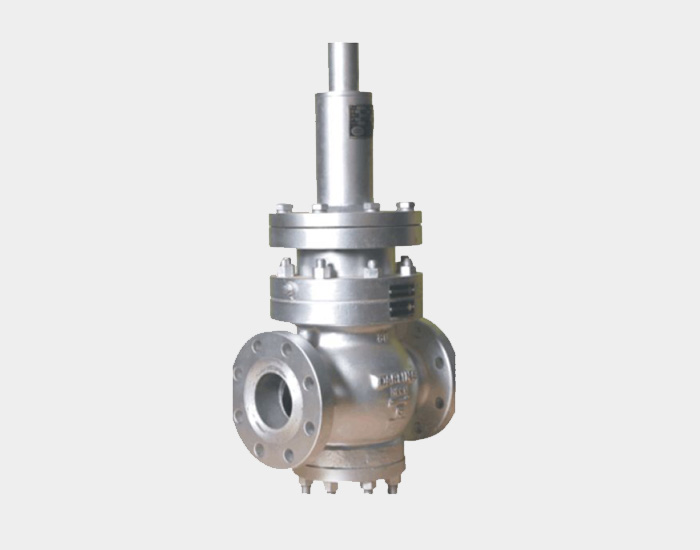

Pressure Reducing Valve
| Body | WCB |
| Trims | SS 304 |
| Size | 2” to 6” |
| Operating | Manually |
| Available | IBR & Non IBR |

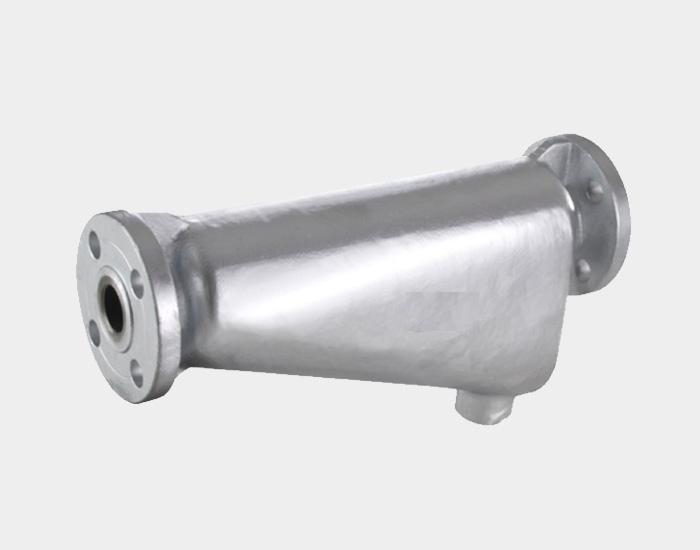

Moisture Separator
| Body | WCB |
| Type | IBR & Non IBR |
| Class | ASA - 150# / 300# |
| Ends | Flanged |
| Size | 2” to 6” |
| Available | IBR & Non IBR |
